Champion 100425 34 Ton 338cc Horizontal/Vertical Log Splitter Manufacturer RFB Assembled

$460.85 USD

GUARANTEED SAFE & SECURE CHECKOUT
PayPal
stripe
VISA
🚚
Nationwide Site Delivery Flatbed truck & offload positioning available
πŸ›‘οΈ
1-Year Structural Warranty Weatherproof, insulated & durable steel frame
⚑
Plug & Play Ready Pre-wired electrical setup with AC climate control
πŸ”’ Secure Checkout
πŸ—οΈ Commercial Grade
⭐ Verified Quality
Overview & Layout
Designed for maximum efficiency, comfort, and durability on site. Perfect for remote construction setups, office expansions, mobile security hubs, or pop-up management rooms.
Technical Specifications
β€’ Frame: Corten heavy-gauge steel frame.
β€’ Insulation: Thermal insulated wall and ceiling panels.
β€’ Climate Control: Integrated high-efficiency A/C unit.
β€’ Entry: Reinforced lockable steel door with secure windows.
Shipping & Placement Guide
Units are delivered fully assembled. Please ensure ground clearance and level concrete/gravel surface prior to crane or flatbed offloading.

Additional information

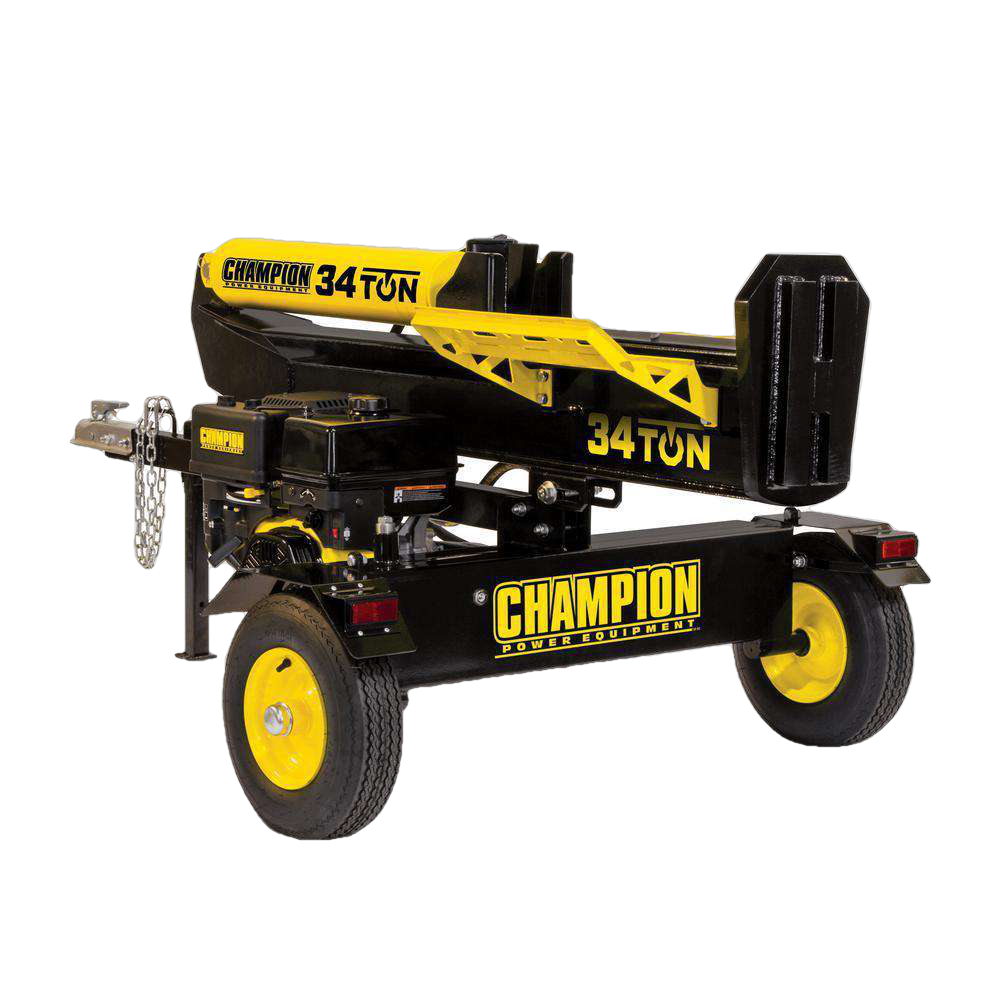

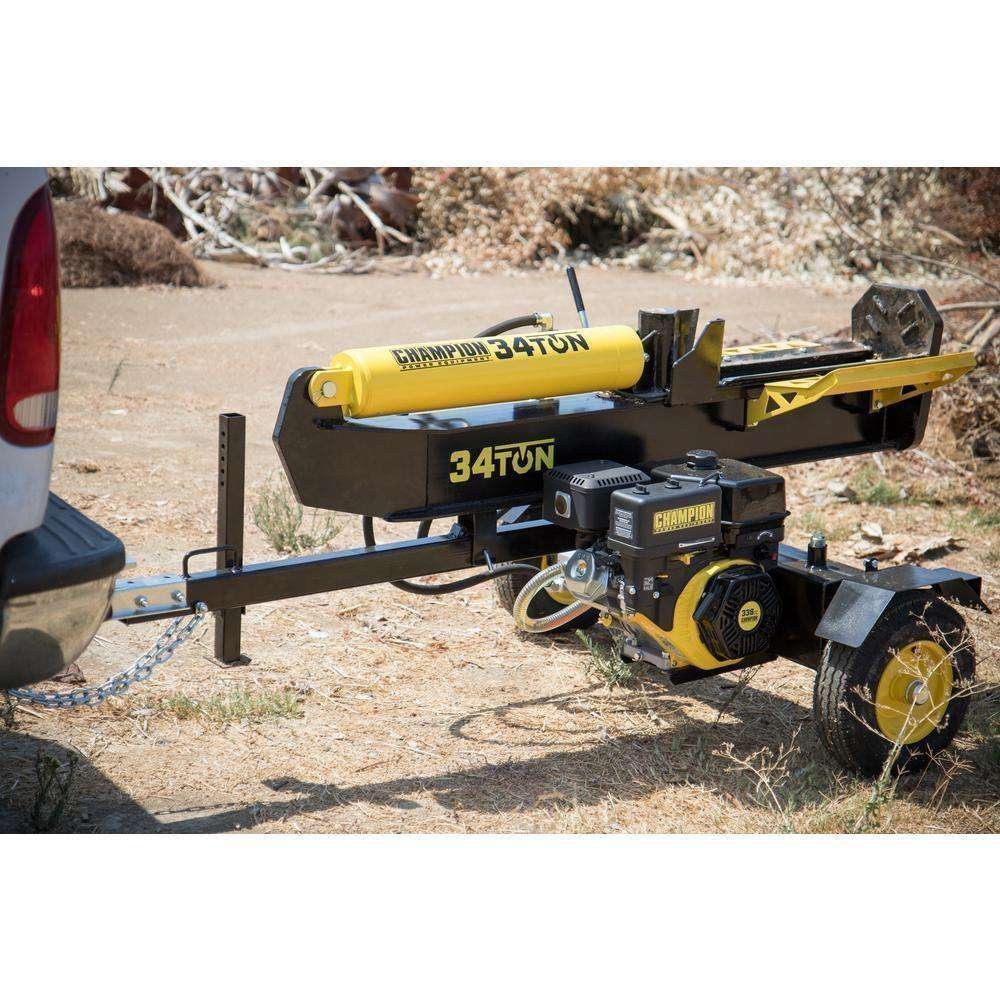

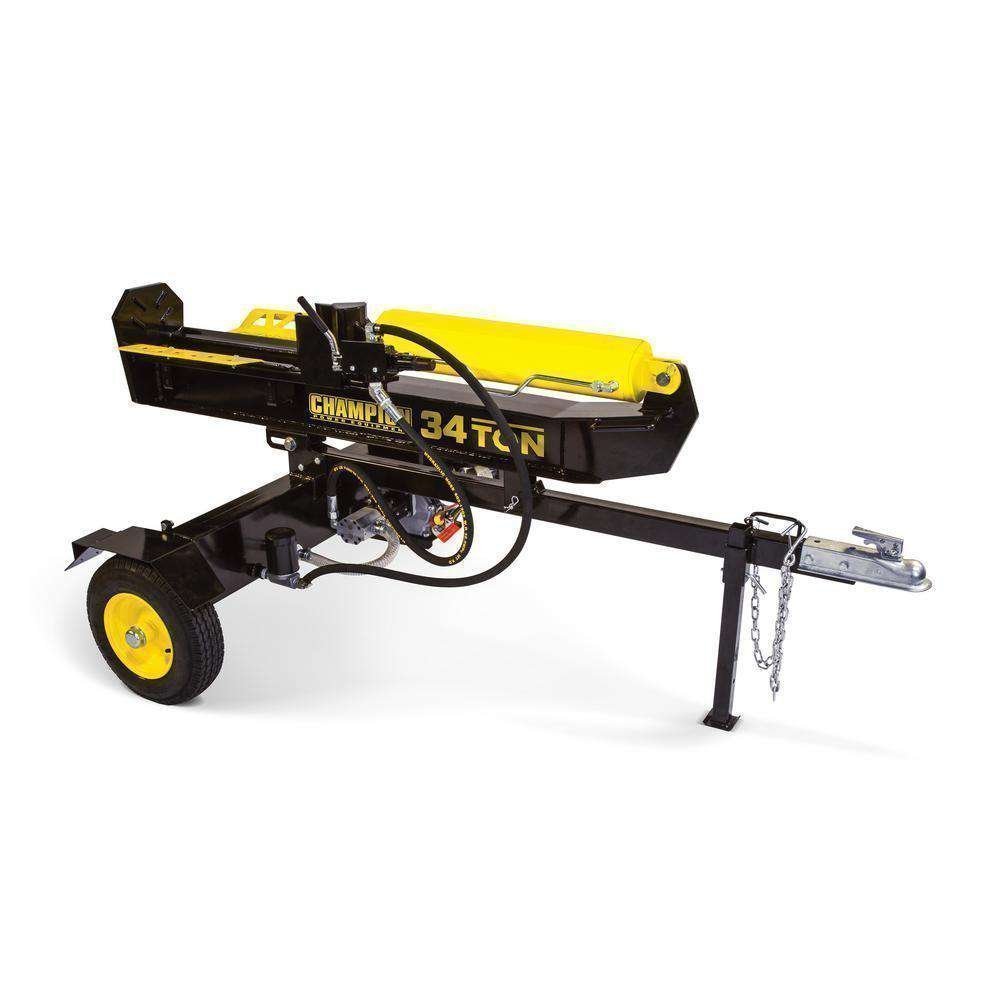

Champion’s towable 34-ton log splitter with its massive 338cc engine easily powers through tough logs. The fast 16-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.

Limited Time Free Shipping & No Sales Tax!

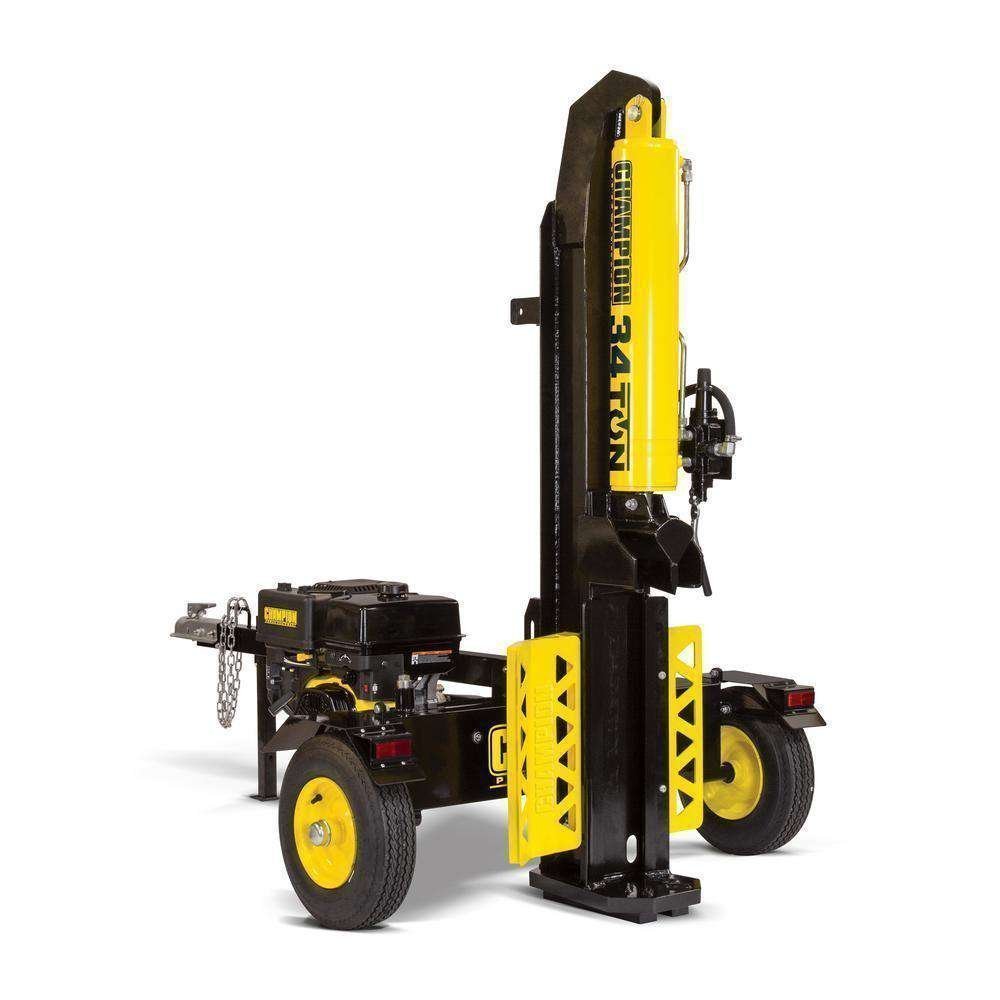

The Champion 35 Ton Gas Powered Log splitter is the largest wood splitter in Champions line up. This log splitter can split either in the horizontal or vertical position with just pulling a pin and rotating the beam and locking the pin back in place.

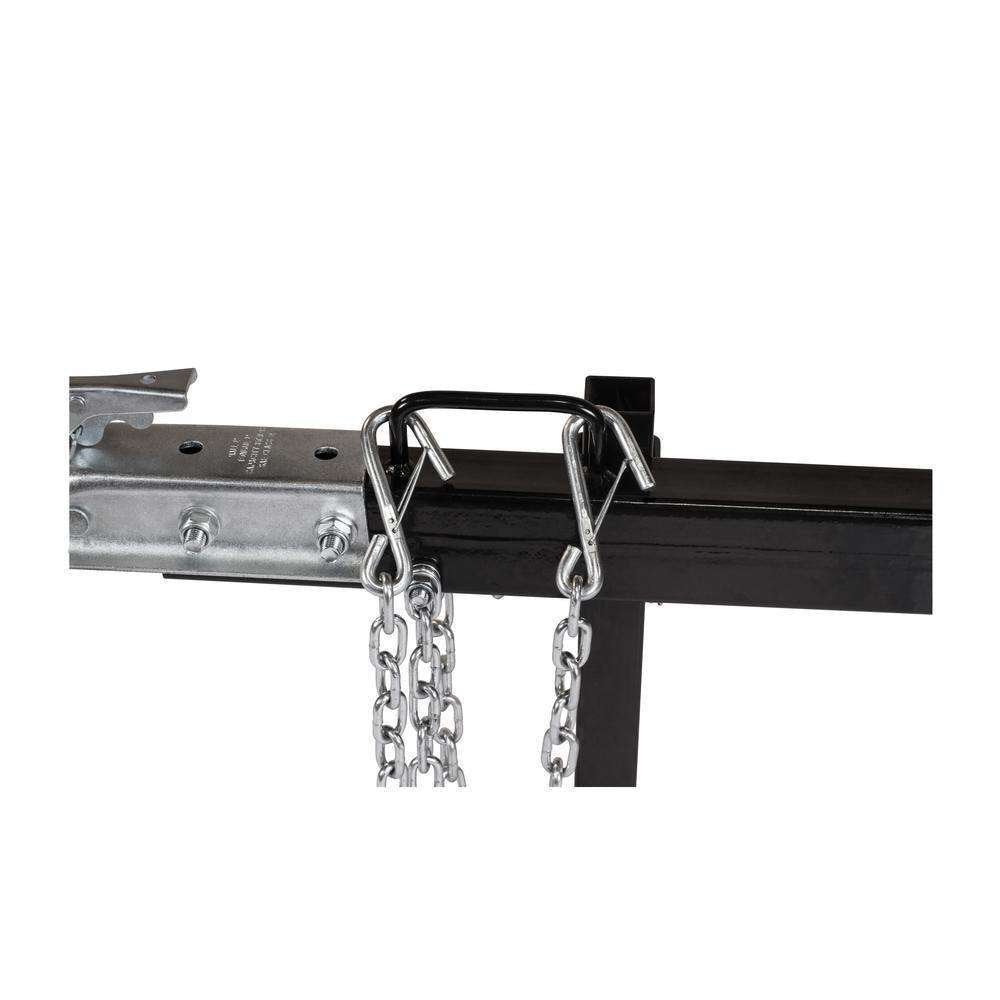

The 338 CC Champion engine (approx 11HP) has a low oil shut off and a cast iron sleeve for durability.Β  This wood splitter comes equipped with a full tow package with a 2β€³ coupler and road approved (DOT) tires. This unit is only partially assembled and will require assembly.

These deliveries will be made with a full size freight truck and there will be little or no assistance provided with unloading the items.Β  If you feel that you will need a lift gate to help unload your item please select the lift gate option.

Detailed Specifications

Engine:
Champion 338 cc (11HP Approx)

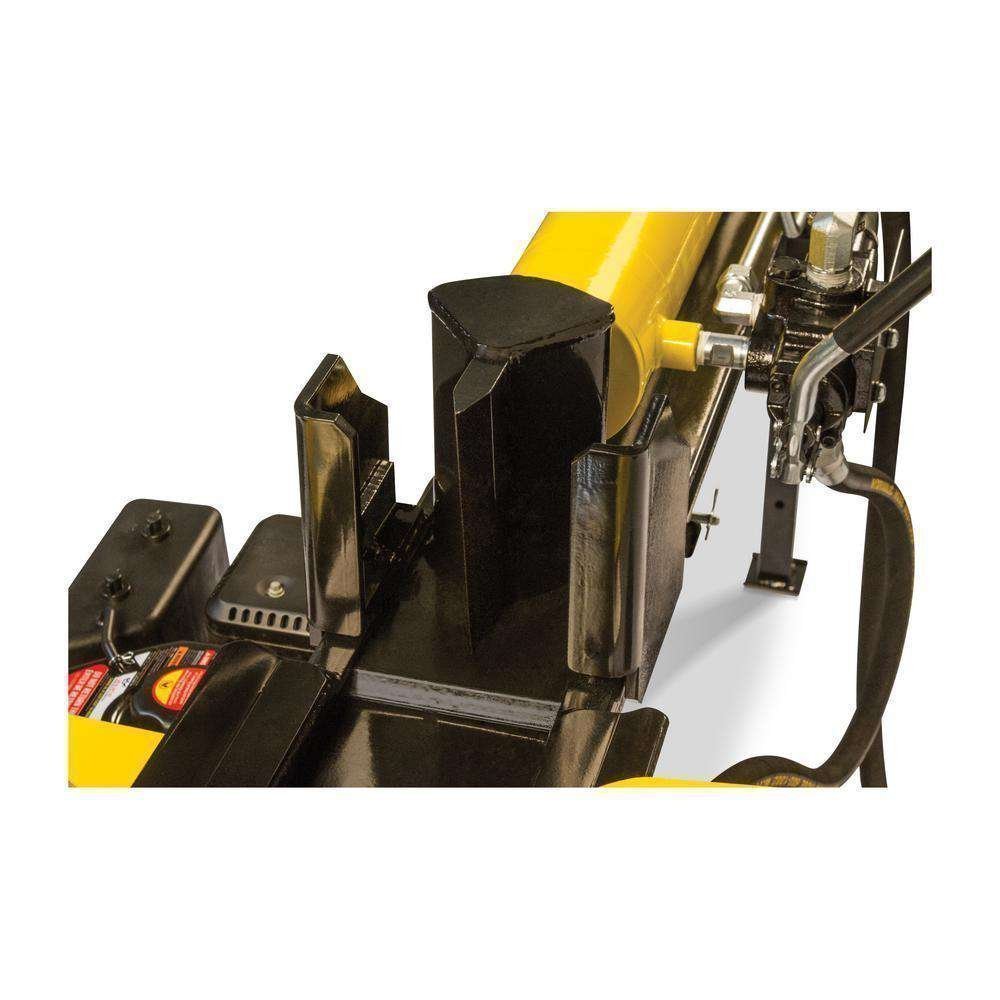

Splitting Wedge:
7β€³ Sharpenable

Operating Position:
Horizontal / Vertical

Force / Tonnage:
35 Ton (70,000lbs)

Cylinder:
4.7β€³ x 23β€³

Cycle Time:
18-20 Seconds (Approx)

Log Opening:
24 Inches

Wheels & Tires:
High-Speed, 4.80 x 8

Road Towable:
Yes – 2β€³ Coupler & Safety Chains

Hydraulic Filter:
Yes – Included

Operating Size:
86β€³ x 41β€³ x 47

Hydraulic System:
9 Gallons

Safety Control Valve:
Detent – Auto Return

2 Stage Pump:
Yes – 13 Gallons Per Minute

Log Cradles:
Yes – Included

Log Dislodger:
Yes – Included

Crate Dimensions:
55β€³L x 27β€³W x 22β€³H

Consumer Warranty:
Yes – 2 Year Limited

Shipping Weight:
617 LBS

Electric Start:

o
